Key Features:
- Eighteen driver universal-fit audiophile-grade in-ear monitor
- Unprecedented detail, accuracy, and fidelity across all frequencies
- 1 tia high, 1 high-mid, 8 mid, 8 low with 4 way passive crossover
- LID technology ensures consistent frequency response regardless of the source
- Tia Single Bore eliminates unwanted tube resonance
- Internal modular apex technology eliminates pneumatic pressure
- 3.5mm 8-Braid Silver detachable 2-pin Cable
- Handcrafted in the USA from aerospace-grade aluminium billet
- Manufacturer warranty: 24 months
Product Data:
MSRP | KSD SKU | Barcode | MPN |
£2,799.00 | P002477 | 852998008649 | U18s |
MSRP | £2,799.00 |
KSD SKU | P002477 |
Barcode | 852998008649 |
MPN | U18s |
Product Resources:
You must be logged in to get access.
Click here to log in

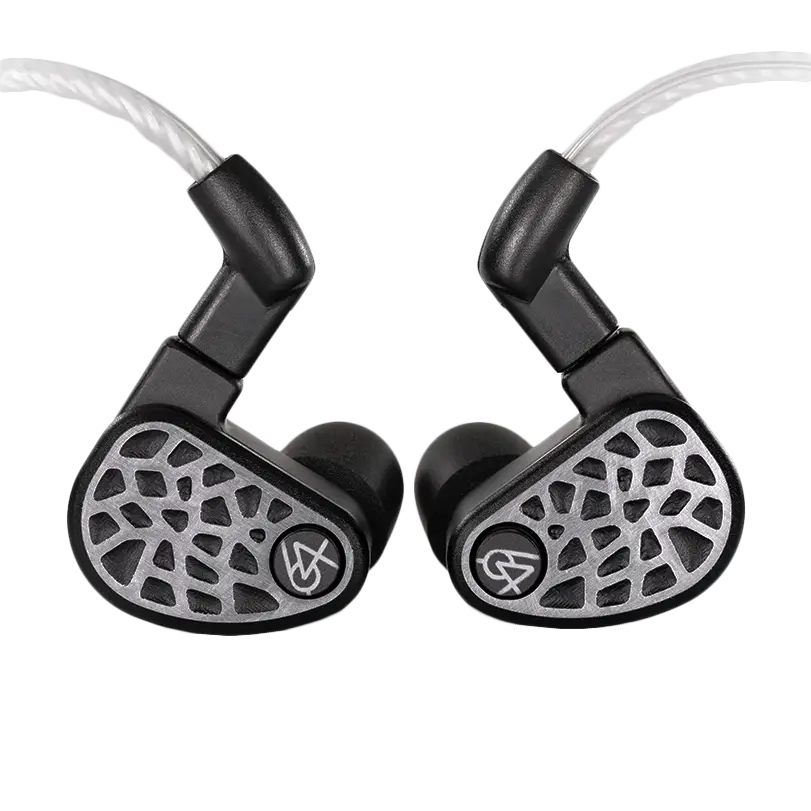

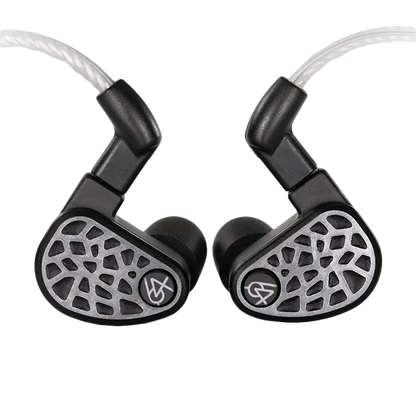

64 Audio U18s
64 Audio, the leader in custom and universal fit in-ear monitors, is proud to announce the launch of the U18s, the new audiophile-grade, universal fit 18-driver in-ear monitor. With the introduction of U18s, 64 Audio has taken the heritage of the 18-driver platform and further pushed the envelope of innovation in sound and design. The U18s combines proprietary drivers, LID technology, and a new electronic crossover network to deliver a uniquely exceptional listening experience.

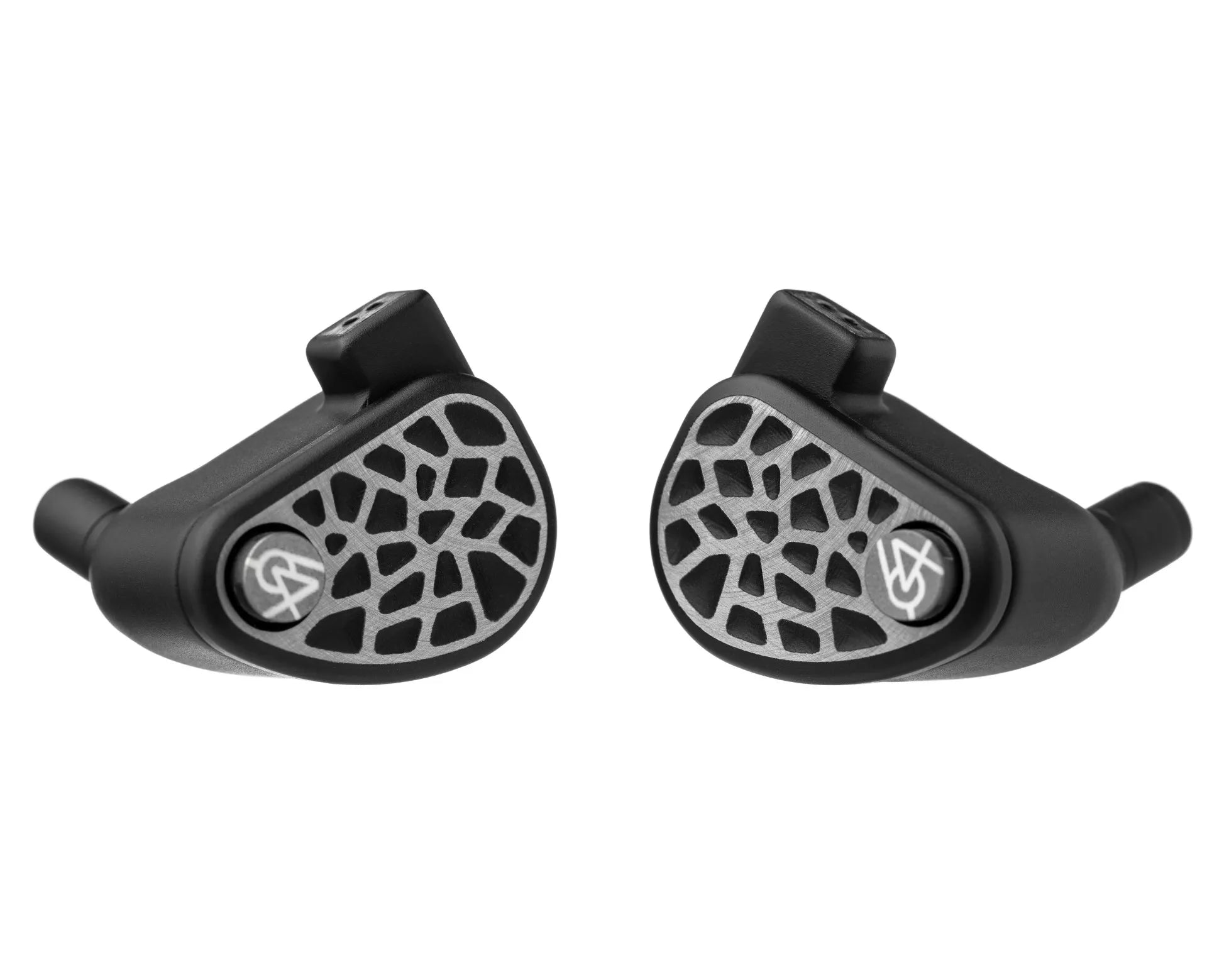

64 Audio U18s includes 18 precision-balanced armature drivers per earpiece, and is handcrafted in the USA from aerospace-grade aluminium billet. CNC milled, hand blasted, fly cut, and twice anodized, the result is a striking fractal design that is inspired by nature itself.
The world's most technically advanced earphone
Tia®

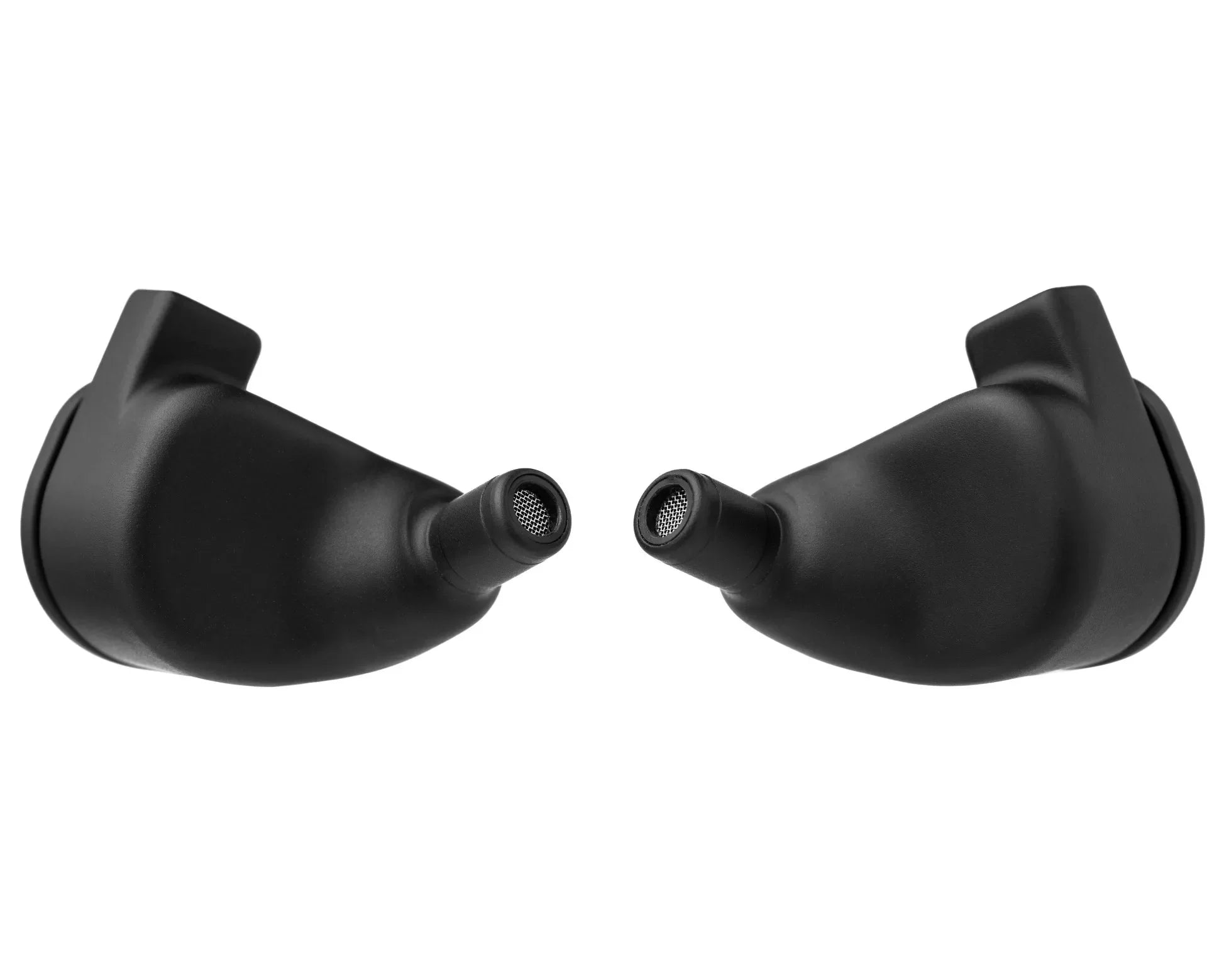

Tubeless In-Ear Audio (tia) is a patented IEM design methodology that aims to reduce unwanted resonance and distortion for a transparent and lifelike sound signature. The tia system is comprised of three major elements: open balanced armature tia drivers, the tia single-bore design, and tia acoustic chambers. U18s features two major elements of the tia system: the tia driver and the tia single-bore design.
Apex®
Air Pressure Exchange (Apex) is a patented vent that releases air pressure in a sealed ear canal all while retaining standard IEM levels of isolation; enabling musicians and music enthusiasts to listen more comfortably for longer. This venting alleviates listener fatigue and allows for a much more realistic soundstage. Apex comes in three module variations for U18s: mX, m15 and m20
LID®
Linear Impedance Design (LID) is a patented circuit that corrects the non-linear electrical resistance of the multiple driver-sets comprising this 18 driver IEM. Varying source amplifier output impedance in devices like smartphones, body packs, DAC/amps, and DAPs typically results in varying frequency response across them, depending on the increase in resistance. Restoring proper interaction with the source and preserving the desired sound signature enables a consistent reliable sound.
Electrical Low Pass Filter
A crossover circuit replacing traditional acoustic dampers which can introduce unwanted distortion through vibration and air turbulence. Rather than using acoustic dampers to filter unwanted frequencies after the driver produces them the electrical low pass filter lowers distortion by eliminating unwanted frequencies before they reach the driver.
Features
- Eighteen driver universal-fit audiophile-grade in-ear monitor
- Unprecedented detail, accuracy, and fidelity across all frequencies
- 1 tia high, 1 high-mid, 8 mid, 8 low with 4 way passive crossover
- LID technology ensures consistent frequency response regardless of the source
- Tia Single Bore eliminates unwanted tube resonance
- Internal modular apex technology eliminates pneumatic pressure
- 3.5mm 8-Braid Silver detachable 2-pin Cable
- Handcrafted in the USA from aerospace-grade aluminium billet

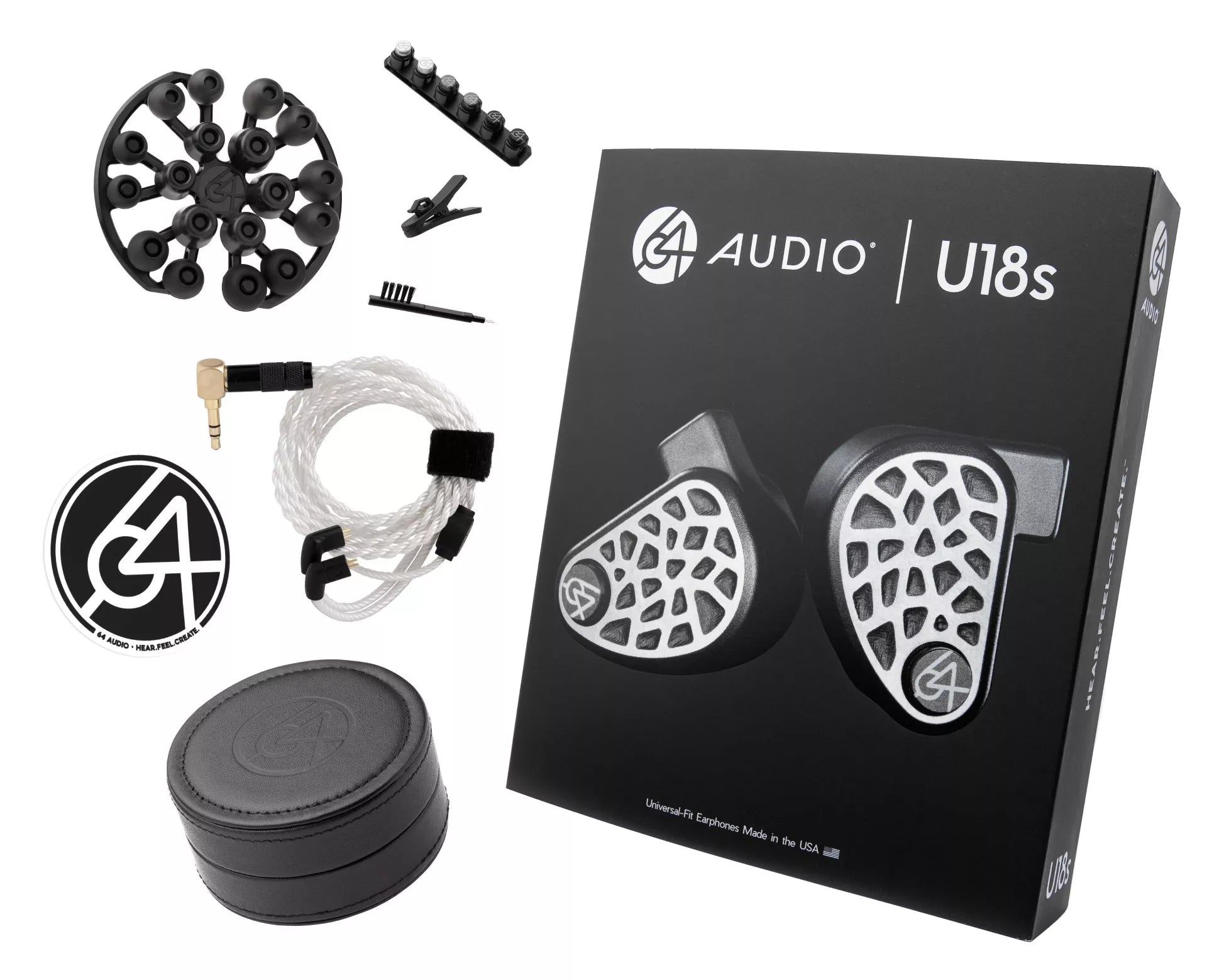

Package Includes
- U18s Universal in-Ear Monitors
- 64 Audio Premium Leather Case
- TrueFidelity Foam Ear Tips (S,M,L)
- SpinFit Silicone Ear Tips (S,M,L)
- Silicone Ear Tips (S,M,L)
- 3.5mm 8-Braid Silver Cable
- Apex Modules: m20, m15, mX
- Round Sticker
Technical Specifications
- Driver configuration: 1 tia high, 1 high-mid, 8 mid, 8 low
- Frequency response: 10Hz - 20kHz
- Sensitivity: 106db dB/mW @ 1mW (84mV)
- Impedance: 8Ω Nominal
- Crossover: Integrated 4-way passive
- Isolation: -10db w/ mX module; -15dB w/ m15 module; -20dB w/ m20 module
