Product Variants:
Key Features:
- Data and power is carried in two separate cables so data or audio signal is protected from interference
- Heavy OFHC continuous copper silver matrix conductors for the best possible signal transfer
- Connectors provide impeccable end to end RF shielding
- Machined entirely from aircraft-grade aluminium
- Flat design prevents damage and wear
- Music will be cleaner and more pure
- Three custom made metal oxide ceramic RF (Radio Frequency) noise silencers
- USB 3.0 standard transmission platform means USB audio passes with least disturbance
- Manufacturer warranty: 12 months
Product Data:
MSRP | KSD SKU | Barcode | MPN |
£379.00 | P003368 | 5060738781652 | 0306026 3.0>2.0 0.7m |
MSRP | £379.00 |
KSD SKU | P003368 |
Barcode | 5060738781652 |
MPN | 0306026 3.0>2.0 0.7m |
Product Resources:
You must be logged in to get access.
Click here to log in

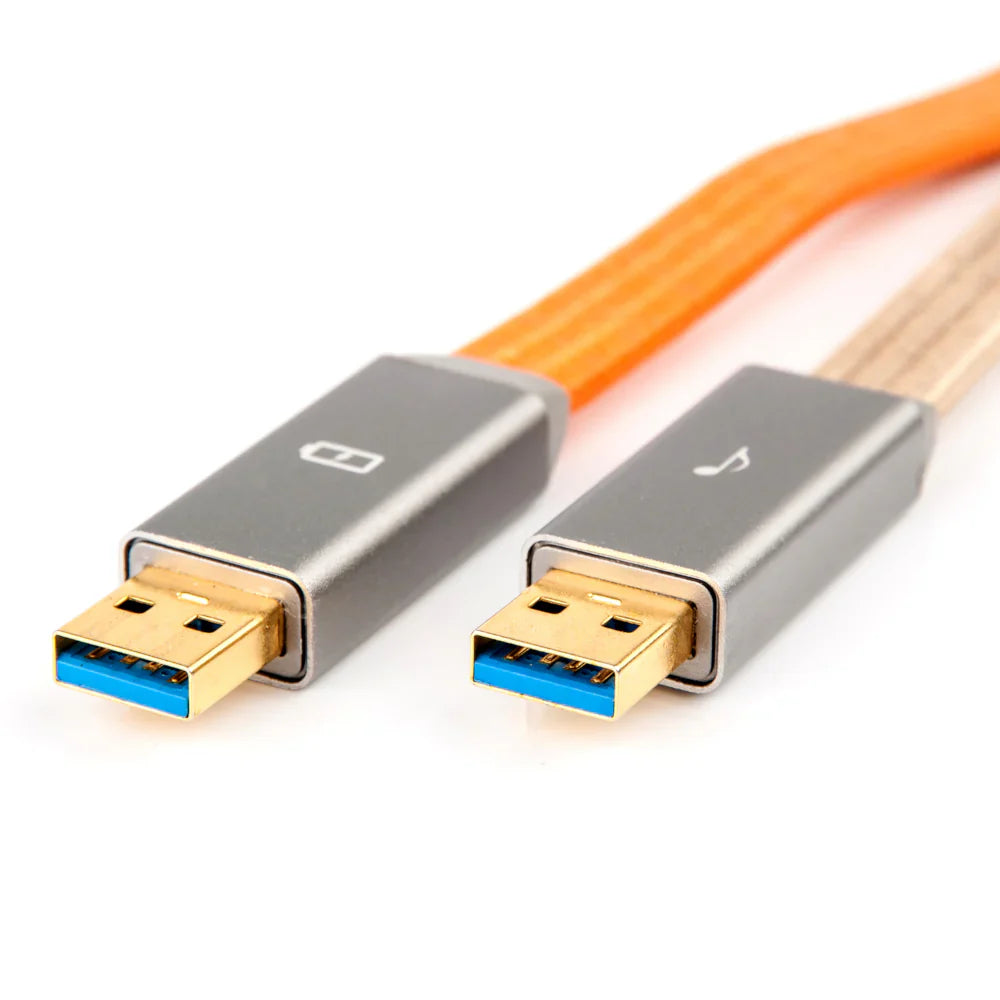

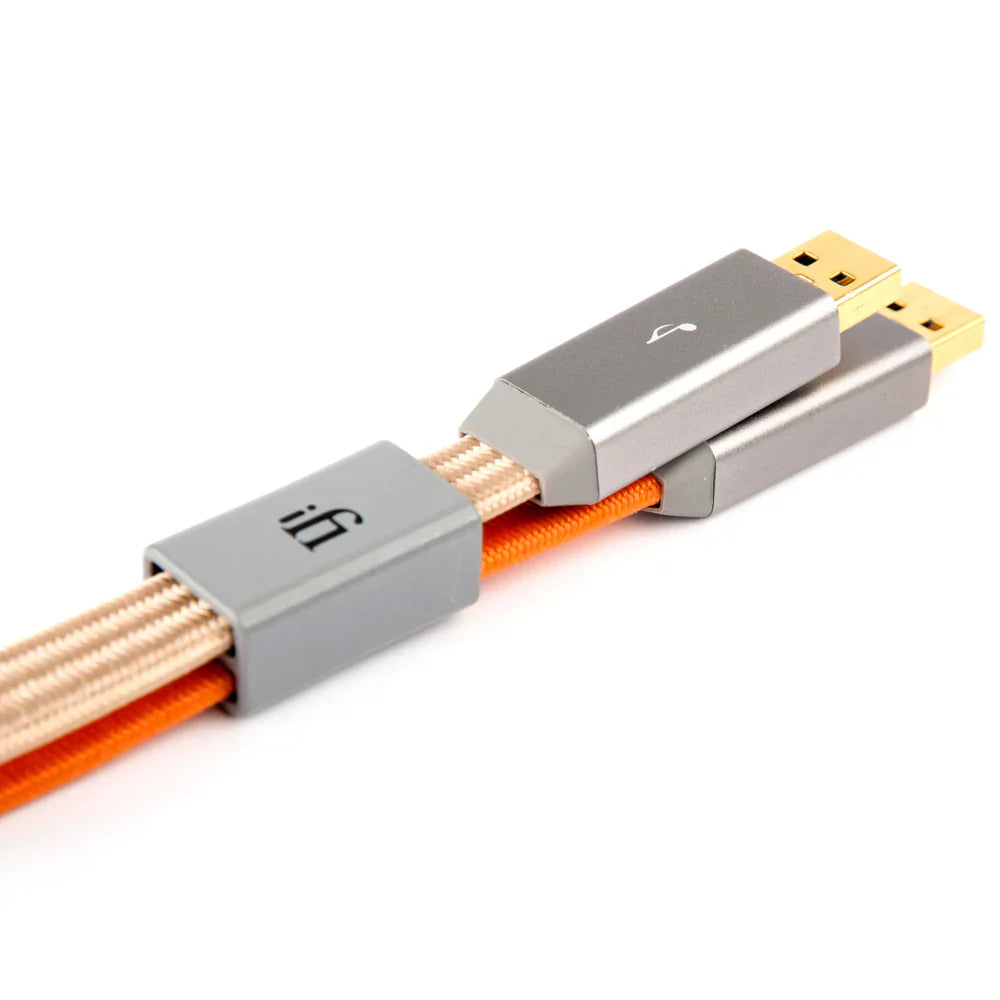

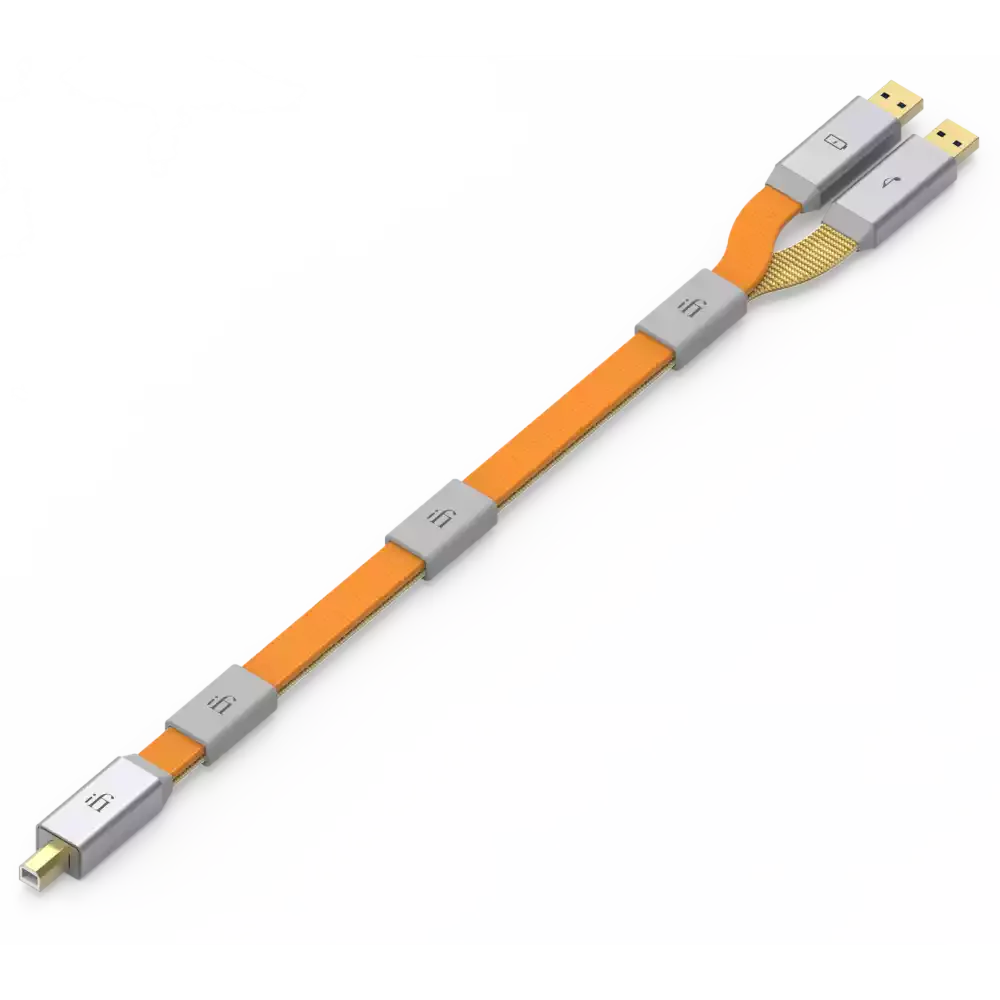

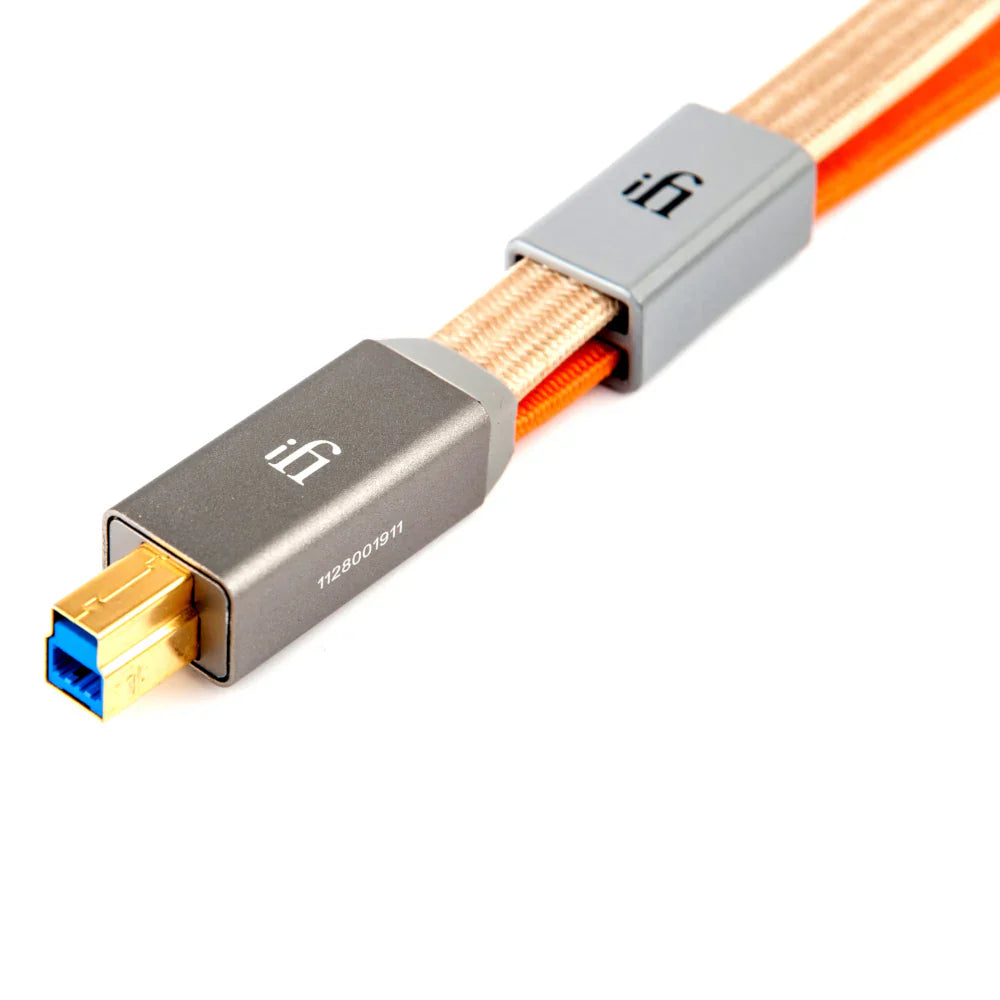

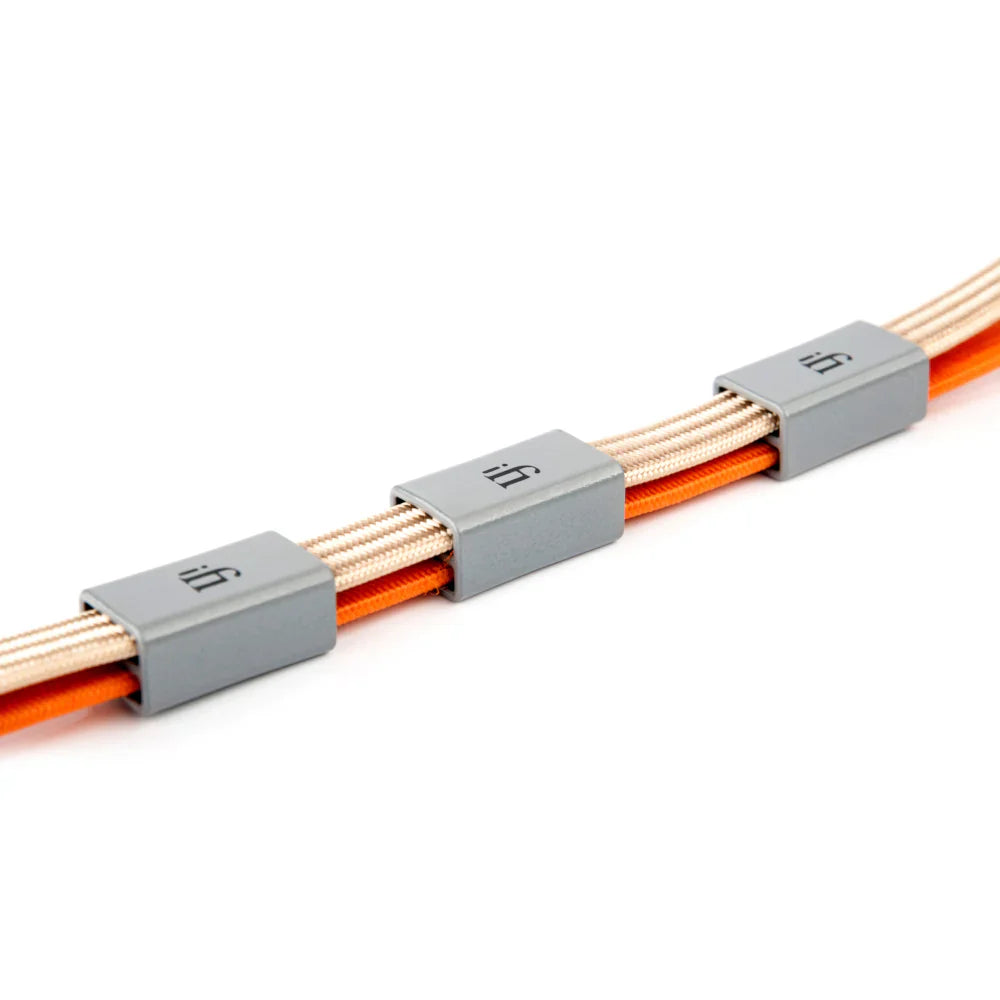

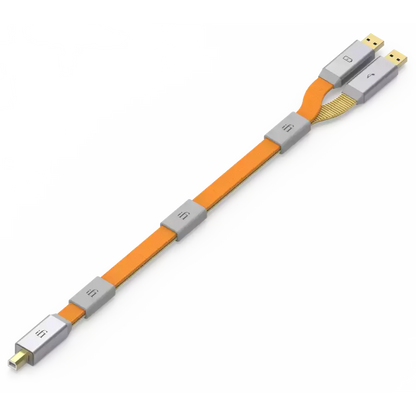

IFI AUDIO GEMINI3.0 CABLE - USB 2.0 - 0.7m
Normal USB cables are not optimised for the highest quality audio. The Gemini3.0 separates the audio and power cables to give you high-quality interference free audio. iFi use heavy OFHC continuous copper silver matrix conductors for the best possible signal transfer.
The cable construction is a custom minimum inductance parallel type with dual shielding. This protects the cable from RFI and EMI noise and provides the cleanest transfer medium possible. With the machined FINAL connectors and atypical RF3 filter designs, the iFi Gemini3.0 sets a whole new sonic benchmark for computer audio transmission.
For ultra-fidelity DACs.
TWO. DEUX. ZWEI.
Whatever language you listen to music in, we know you prefer it as interference free as possible. You need the Gemini3.0 dual-headed cable. In most mass-produced USB cables, the signal and power cables are normally compacted together. This means two things – poor conductivity and they are not protected from one another. This leads to interference and degrades quality.
DEGREES OF SEPARATION
The Gemini3.0 cable carries the audio signal and power in two separate cables. This separates the delicate USB data signal from the USB power. No interference and sound quality remains unaffected.
SUPERIOR DESIGN. BETTER SIGNAL. STRONG SHIELDING.
We strictly adhere to the usb.org specifications. A key factor that is often overlooked is sticking to the 90 ohms impedance. This is achieved using the following exhaustive methods.
THE GOLDEN TOUCH
The signal runs through the cable and the connector. This means the connector too must be exceptional. iFi's FINAL USB connectors provide impeccable end-to-end RF shielding. They are machined entirely from solid, aircraft-grade aluminium. Plus their gold-plated connections make for years of steadfast service.
TWO HEADS ARE BETTER THAN ONE.
The power cable is heavier gauge than often found in standard USB cables. And signal and ground have their own respective geometry for optimal conductivity. There are dual-headed designs and then there is the Gemini3.0 dual headed design. Nothing comes close.
Features
- Data and power is carried in two separate cables so data or audio signal is protected from interference
- Heavy OFHC continuous copper silver matrix conductors for the best possible signal transfer
- Connectors provide impeccable end to end RF shielding
- Machined entirely from aircraft-grade aluminium
- Flat design prevents damage and wear
- Music will be cleaner and more pure
- Three custom made metal oxide ceramic RF (Radio Frequency) noise silencers
- USB 3.0 standard transmission platform means USB audio passes with least disturbance
Technical Specifications
USB3 Data
- Construction: Minimum inductance parallel construction
- Conductors: 24 and 28AWG
- Conductor material: Heavy OFHC continuous cast copper silver matrix
- Insulation: HD Polyethylene
- Shielding: Quadruple-shields
- Impedance: 90Ohms
- AC spark insulation: 1500V
- Connectors: iFi ‘FINAL’ USB connectors
- Insulation resistance: 100Mohm
- Tensile strength: 1500PSI
USB3 Power
- Construction: Minimum inductance parallel construction
- Conductors: 12AWG
- Conductor material: Heavy OFHC continuous cast copper
- Insulation: Linear Polyethyleneusb (LPE) insulation
- Current Rating: 30A
- Lengths/Weights: 0.7m / 150g (0.33 lbs); 1.5m / 170g (0.37 lbs)
