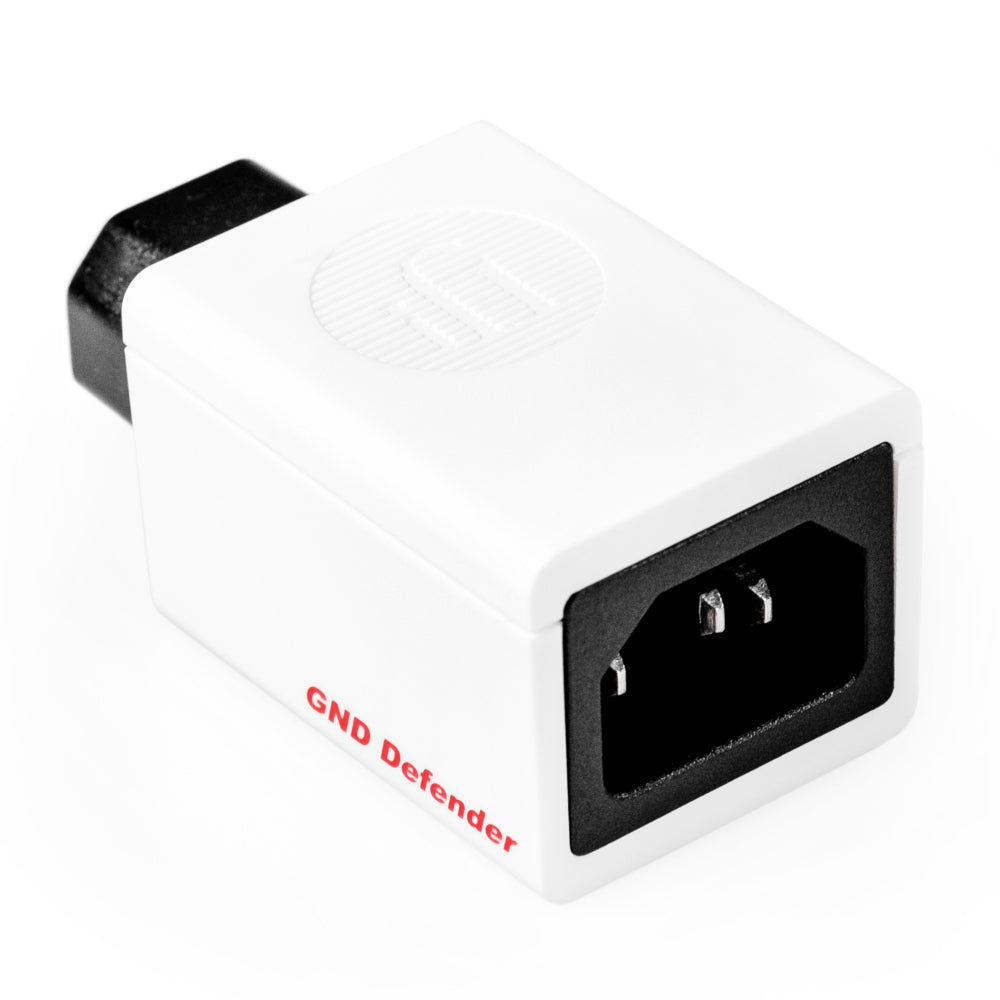

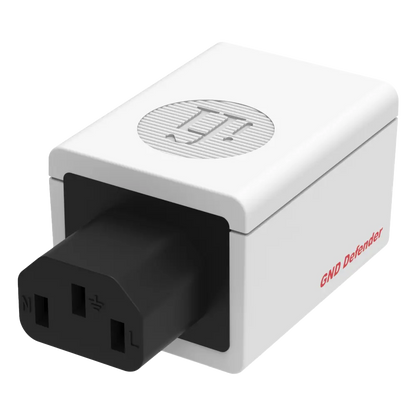

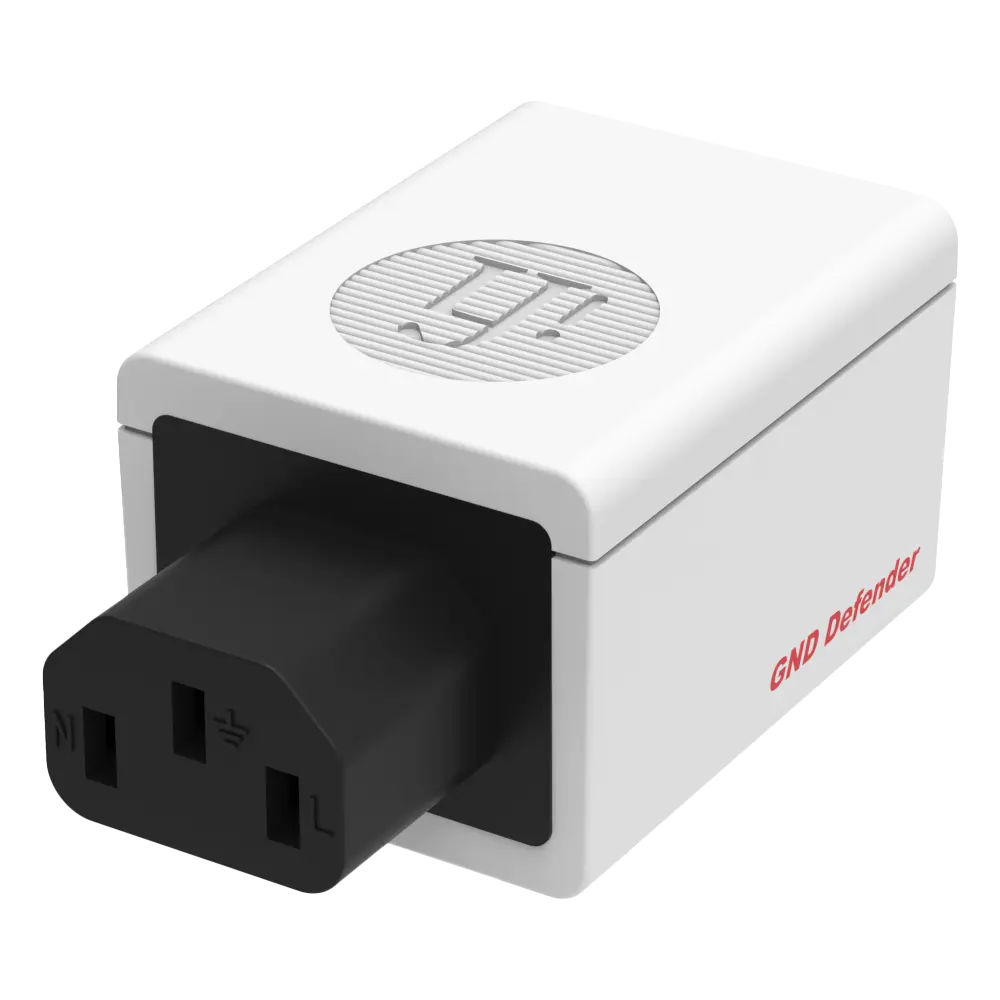

iFi Audio GND Defender - Intelligent Ground-Loop Eliminator

Key Features:

  • EMI shielding is retained
  • Surge overload rating of 220A
  • Maximum rating >10A, continuous current rating 7A
  • Handles all voltages around the world from 90-240V
  • Flame resistant IEC socket/connector/chassis
  • Fireproof polymers UL94-V0
  • Manufacturer warranty: 12 months

Product Data:

MSRP KSD SKU Barcode MPN
£99.00 P003281 5060738784202 306042
MSRP £99.00
KSD SKU P003281
Barcode 5060738784202
MPN 306042

Product Resources:

You must be logged in to get access.
Click here to log in

View full details

IFI AUDIO GND DEFENDER

The optimum configuration for each system is one Ground/Earth for the whole system. If a system has multiple Grounds/Earths, then it often creates unwanted ground loops. These systems will then have an annoying low-frequency hum emitted from the speakers.

Current solutions either jeopardise both safety and EMI shielding (e.g. cheater plug), or EMI shielding. And most are single country uses only. The GND Defender in the correct way, intelligently detects a ground loop and will cut the ground for that component.

Ground control to Major components.

banner

AI GROUND DETECTION
With a GND Defender at the IEC power input, it will intelligently detect and remove the ground loop at the component.

BEHIND THIS, THE GND DEFENDER.
Intelligently breaks DC ground loops to eliminate ground loop hum. EMI shielding is retained. Equipment Safety is unaffected (not a ground lift – so maintains equipment safety ground). If multiple ground loops exist, more than one GND Defender may be required.

BATTLESHIP BUILD
The GND Defender is not only at the cutting-edge in terms of technology but also safety with high-performance glass passivated semiconductor, High Case Dielectric Strength of 1500VRMS UL Listed X7R Capacitor, and high-temperature stability.

WORLDWIDE USAGE
Surge overload rating of 220A, with a maximum rating of less than 10A, continuous current rating 7A, it handles all voltages around the world from 90-240V.

Features

  • EMI shielding is retained
  • Surge overload rating of 220A
  • Maximum rating >10A, continuous current rating 7A
  • Handles all voltages around the world from 90-240V
  • Flame resistant IEC socket/connector/chassis
  • Fireproof polymers UL94-V0

Technical Specifications

  • AI Ground Detection: Each unit will automatically disconnect the ground on that device
  • Ground Safe: Auto reinstatement of ground connection to pass current if a fault is detected
  • Voltage rating: 90 – 240 volts
  • Surge overload rating: 220A
  • Continuous current rating: 10A (1100W – 2400W)
  • Universal IEC: Hospital-grade IEC connectors
  • Dimensions: 68 x 37 x 32 mm / 2.7” x 1.5” x 1.3”
  • Weight: 61g / 2.2oz
More product information on the SilentPower by iFi website
