iFi Audio iDSD Diablo 2 - Ultra-Res Portable Wireless DAC & Headphone Amplifier with Lossless Bluetooth

Key Features:

  • Multiple operational modes of either pure DAC or DAC/headphone amp
  • Powered by battery or mains with iPower 2 power supply included
  • High-capacity lithium-ion battery provides long runtime despite extreme amp power
  • Supplied with Diablo 2 desktop stand and custom-made travel case
  • Delivers up to 5,180mW of prodigious power
  • World’s first Lossless Bluetooth portable DAC/AMP
  • Compatible with xMEMS microspeaker technology
  • Normal, Turbo and Nitro: 3 gain modes
  • Optimised output for high sensitivity headphones/IEMs
  • Balanced, symmetrical dualmono topologies
  • Manufacturer warranty: 12 months

Product Data:

MSRP KSD SKU Barcode MPN
£1,299.00 P003230 5060738787647 303018
MSRP £1,299.00
KSD SKU P003230
Barcode 5060738787647
MPN 303018

Product Resources:

You must be logged in to get access.
Click here to log in

View full details

iFi Audio iDSD Diablo 2

Transportable or desktop, iFi's iDSD Diablo 2 delivers. Meet the ultimate solution for audiophiles needing separate systems for home and mobile use: the iDSD Diablo 2. With a powerful 5,180mW headphone output, it has more power than many desktop DAC/AMP setups. For ultra-res wireless audio the Diablo 2 sports Bluetooth 5.4 that supports the new aptX Lossless codec making it the world’s first Lossless Bluetooth portable DAC and amp combo.

The Diablo 2 supports the revolutionary xMEMS‘ solid state monolithic speaker technology making it the go-to DAC and amp combo compatible with xMEMS microspeaker technology. It features Normal, Turbo and Nitro gain modes - optimised for high sensitivity headphones/IEMs, and the most power-hungry headphones on the market.

For advanced wireless connection the Diablo 2 supports the new aptX Lossless codec - the only Bluetooth codec capable of streaming lossless CD-quality audio. Every Bluetooth format is supported including aptX Lossless, aptX Adaptive, LDAC, LHDC/HWA and more. Digital wired audio is able to support 32-bit/784kHz PCM, DSD512 and full MQA decoding.

Heavenly Sound. Devilish Power.

banner

EVERY BLUETOOTH CODEC AND MUSIC FORMAT
The Diablo 2 features the latest Bluetooth 5.4 technology, supporting the new aptX Lossless codec. The Diablo 2 used Qualcomm’s new QCC518x Bluetooth audio chip, is qualified to Bluetooth 5.4, supported all* Bluetooth formats including: aptX Lossless, aptX Adaptive, aptX, LDAC, LHDC/HWA, AAC and SBC. Dual Core Burr Brown chipset provides Bit-Perfect DSD and PCM support at sample rates up to 768kHz, DSD512, and Full MQA decoding.

POWER-HUNGRY HEADPHONES? HIT NITRO
The Diablo 2 offers three power modes: Normal for IEMs, Turbo for mid-sensitivity headphones, and Nitro for demanding headphones, boasting a 19.2V maximum output. It accommodates a wide range of headphones, from IEMs to power-hungry over-ears. It features a 6.3mm single-ended headphone socket and a 4.4mm balanced output. Additionally, a 3.5mm to 6.35mm adapter is included for versatile connectivity.

XMEMS NEXT-GEN HEADPHONE DRIVER TECHNOLOGY
Due to the high voltage requirements of xMEMS, iFi has partnered with them to integrate this technology into the new Diablo 2. It utilises the piezoelectric effect to create paper-thin solid-state speakers by converting electrical energy into mechanical energy, exciting an integrated silicon membrane to generate powerful acoustic sound waves for enhanced audio output.

DEVIL IN THE DETAILS
When examining the Diablo 2’s front panel, you’ll find a new Volume Lock switch next to the volume control, preventing accidental adjustments during transport. At the back panel’s left side, there’s a switch for mode selection and Bluetooth pairing. On the right side, two USB-C ports streamline cable management—one for audio and the other for charging.

WINGS OF INFERNO
The Diablo 2 comes with four wings that you can customise to position it horizontally, like a desktop DAC/amp, or vertically to save space. Additionally, it features twenty-two rails for improved cooling performance, with eight of these rails being compatible with the Diablo wings, enabling desktop stand use.

SOUND SO MOVING. EVEN THE DEVIL MAY CRY
Diablo 2 features PureWave, Servoless DirectDrive, OptimaLoop, and Advanced Jitter Reduction Technology, delivering exceptionally pure, detailed, and emotionally touching sound, these technologies elevate performance to unparalleled heights, even challenging desktop DAC/amps.

Features

  • Multiple operational modes of either pure DAC or DAC/headphone amp
  • Powered by battery or mains with iPower 2 power supply included
  • High-capacity lithium-ion battery provides long runtime despite extreme amp power
  • Supplied with Diablo 2 desktop stand and custom-made travel case
  • Delivers up to 5,180mW of prodigious power
  • World’s first Lossless Bluetooth portable DAC/AMP
  • Compatible with xMEMS microspeaker technology
  • Normal, Turbo and Nitro: 3 gain modes
  • Optimised output for high sensitivity headphones/IEMs
  • Balanced, symmetrical dualmono topologies

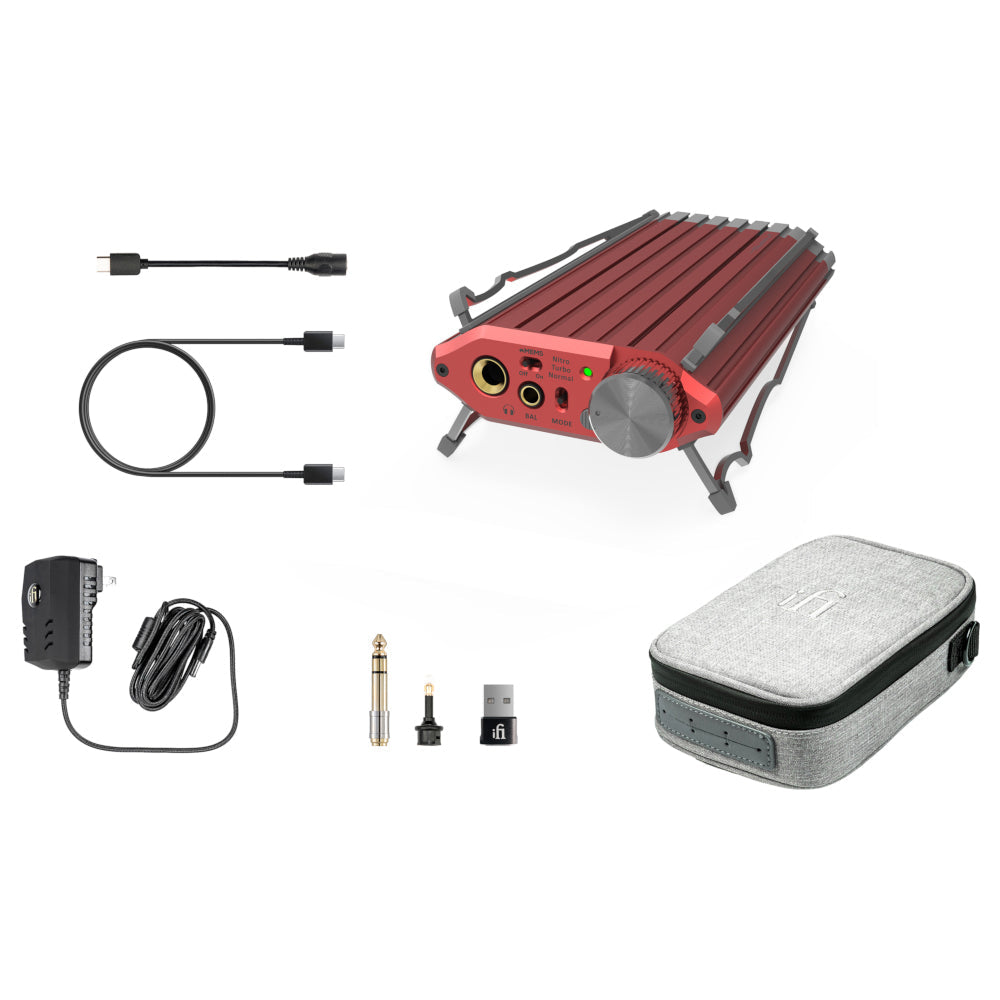

Package Includes

  • iFi Audio - iDSD Diablo 2
  • iPower 2 (5V)
  • USB-C Cable
  • USB-C OTG Cable
  • USB-C to USB-A adapter
  • TOSLINK optical adapter
  • 3.5mm to 6.35mm headphone adapter
  • iTraveller
  • Quick start Card
  • Instruction Card

Technical Specifications

DIGITAL

  • Hi-res support: 768kHz; DSD512; full MQA
  • Bluetooth formats: aptX Lossless, aptX Adaptive, aptX, LDAC, LHDC/HWA, AAC, SBC

OUTPUT POWER

  • Output: 4.4mm, 6.3mm
  • 4.4mm: >19.2V/611mW (@600Ω); >12.87V/5180mW (@32Ω)
  • 6.3mm: >9.6V/153mW (@600Ω); >8.85V/2450mW (@32Ω)
  • xMEMS: >28Vpp (4.4mm output)

LINE OUTPUT

  • Output impedance: ≤200Ω
  • SNR: ≥114dB(A)
  • DNR: ≥114dB(A)
  • THD+N: 0.002% @ 0dBFS 200kΩ

GENERAL

  • Power consumption Nitro: 12W; Turbo 5W; Normal 2W; xMEMS 8W
  • Battery: Lithium-polymer 4800mAh
  • Charging: Via USB-C – BC v1.2 compliant up to 1900mA
  • Dimensions: 166x85x28.5mm
  • Net weight: 455g (1.0Ibs)
More product information on the iFi Audio website
