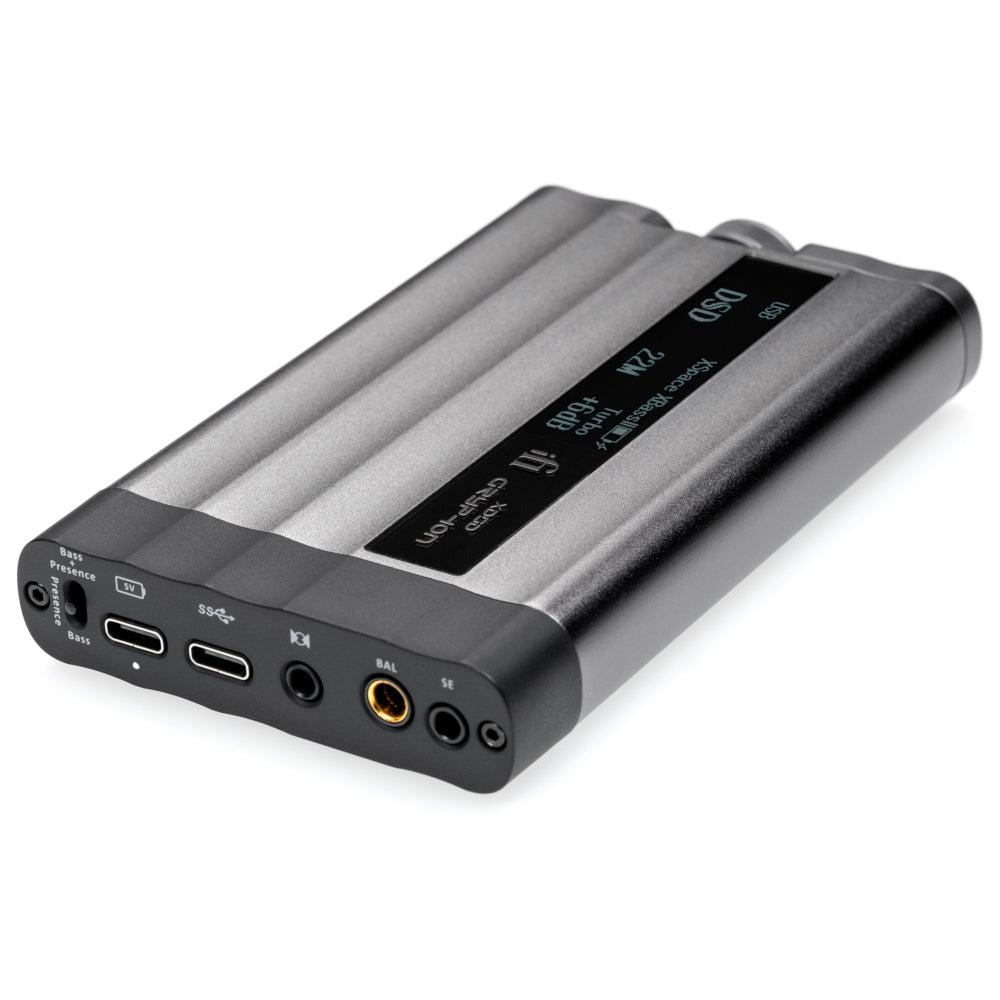

iFi Audio xDSD Gryphon Pro Pack - Portable Ultra-Res Wireless Balanced Headphone Amp & USB DAC with Belt Pack System

Product variants

Key Features:

USB-C and S/PDIF digital inputs. 4.4mm balanced and 3.5mm unbalanced analogue inputs
HD Bluetooth input
Balanced 4.4mm and unbalanced 3.5mm headphone outputs
32-bit/768kHz PCM, DSD512, Bluetooth 96kHz, MQA decoding
Burr-Brown MultiBit D/A
Up to 8 hours constant use battery life

Manufacturer warranty: 12 months

Product Data:

MSRP	KSD SKU	Barcode	MPN
£699.00	P003362	5060738787630	0310003

MSRP	£699.00
KSD SKU	P003362
Barcode	5060738787630
MPN	0310003

Product Resources:

You must be logged in to get access.
Click here to log in

View full details

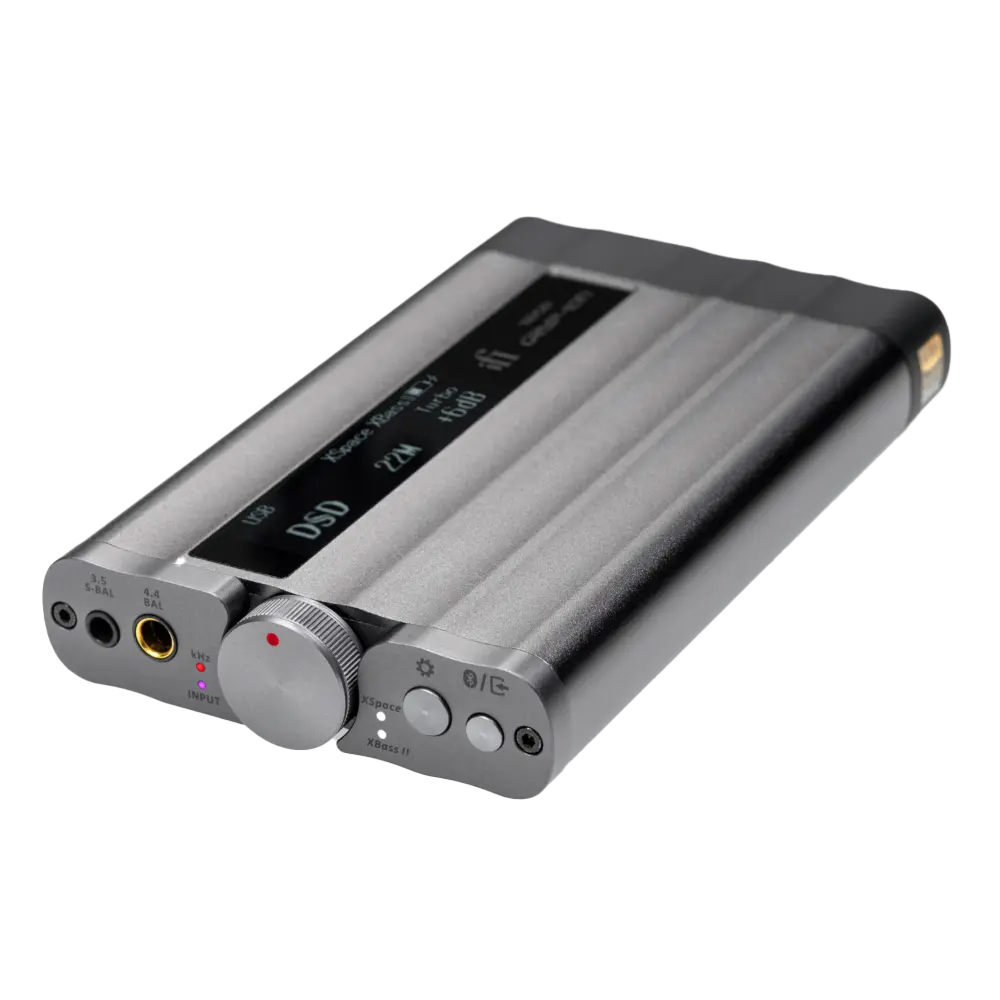

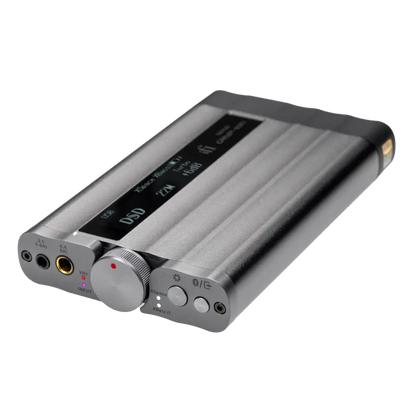

iFi Audio Gryphon Pro Pack

Gryphon Pro Pack is the premier solution for ultra-high quality personal monitoring for professional working musicians. It is the most comprehensively equipped portable headphone amp and D/A on the planet. Strap it to your belt, connect a pair of custom IEMs or full headphones and experience personal monitoring like never before, thanks to the high-power analogue amplifiers.

Take it with you on the road and use it on stage to power your IEMs with the sort of audio quality and clarity that is very rarely experienced in live situations. Connect the monitor feed to the Gryphon Pro Pack’s balanced input and your IEMs to its headphone output, adjusting the iEMatch control to fine tune the output.

The CyberSync software-driven analogue volume control senses and synchronises with the digital source, such as a DAW. Whatever OS it is connected to, CyberSync instructs the source to bypass its inferior software volume control. The volume is controlled by the Gryphon’s superior analogue volume control chip regardless of whether the Gryphon rotary volume or source’s controls are used.

Produce Sound. Hear Music.

Studio. Or road.
When you are working in the studio, the Gryphon Pro Pack proves its worth. Use it when tracking to monitor the guide or other musicians’ tracks with a level of quality you’ve never heard before. Rely on it to perform perfectly, every time so tracking sessions run smoothly with minimum downtime. Digital sources can be fine-tuned using the switchable filters. Choose between Bit Perfect, Standard and Gibbs Transient Optimised for a personalised playback experience.

Stacked. With Tech.
The Gryphon Pro Pack’s PureWave analogue amplifier stage has 1,000mw at 32 Ohms and a huge 6.7v output, ensuring that compatibility with even the most demanding headphones isn’t a problem. Connect balanced and unbalanced headphones and tune the output for high-sensitivity IEMs using iEMatch to cut out the hiss. The XBass active EQ circuit allows you to compensate for the lack of bass in some headphones – particularly open-backed models.

Balance. Of Power.
The Gryphon Pro Pack gives equal weight to its analogue and digital stages. There is no compromise inside the Gryphon. The ultra-high resolution digital stage uses a state-of-the-art Burr-Brown MultiBit D/A chipset at its core for bit-perfect conversion. The PureWave analogue power sections outputs 1,000mw, providing a huge boost over the output from laptops and digital audio players. Both stages within the Gryphon are kept separate and optimised for maximum performance.

And. Personal.
Finished your performance and want to relax on the tour bus? The Gryphon Pro Pack is the perfect portable headphone amp and D/A, allowing you to enjoy your personal music or movie collection on the move from your smart phone or tablet’s digital output. In addition to its traditional inputs, the Gryphon Pro Pack integrates a HD Bluetooth playback facility, making it perfect for your personal enjoyment of music streamed from your phone or DAP using aptX, aptX HD, aptX Adaptive, aptXLL, LDAC and LHDC/HWA and others.

iFi Audio xDSD Gryphon Pro Pack - Portable Ultra-Res Wireless Balanced Headphone Amp & USB DAC with Belt Pack System

Features

USB-C and S/PDIF digital inputs. 4.4mm balanced and 3.5mm unbalanced analogue inputs
HD Bluetooth input
Balanced 4.4mm and unbalanced 3.5mm headphone outputs
32-bit/768kHz PCM, DSD512, Bluetooth 96kHz, MQA decoding
Burr-Brown MultiBit D/A
Up to 8 hours constant use battery life

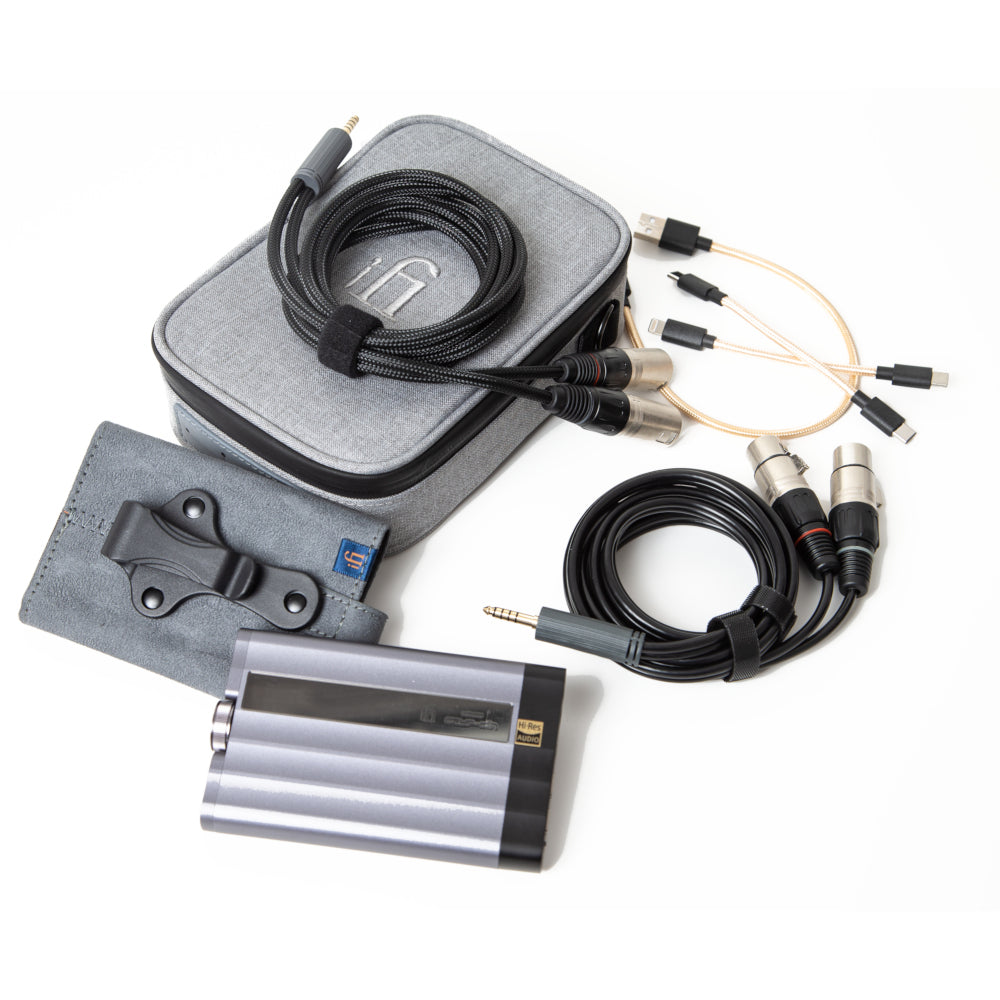

Package Includes

iFi Audio xDSD Gryphon
xDSD Gryphon case
iTraveller
4.4mm to Twin XLR
Female breakout Cable
4.4mm to Twin XLR
Splitter Male CableUSB-A to USB-C Cable
USB-C to USB-C Cable
Lightning to USB-C Cable
Protective bag
User Manual
Instruction card

Technical Specifications

Input Wireless: Bluetooth 5.1 (aptX, aptX HD, aptX Adaptive, aptX LL, LDAC, HWA, AAC and SBC Codec)
Input Wired (digital): USB-C; S/PDIF co-axial
Input Wired (analogue): Balanced 4.4mm; Single-Ended 3.5mm
Formats: DSD DSD512/256/128/64, Octa/Quad/Double/Single-Speed; PCM 768/705.6/384/ 352.8/192/176.4/ 96/88.2/48/44.1kHz; DXD 768/705.6 /384/352.8kHz, Double /Single-Speed DXD

; MQA (Decoder) 384 /352.8kHz; Bluetooth Up to 96kHz
DAC: Burr-Brown

Battery: USB-C charging. BC1.2 compliant up to 1900mA charging current
Dimensions: 123x75x19 mm (4.8"x3.0"x0.7")
Weight: 215 grams (0.5 Ibs)

Line Section
Output Balanced: 6.7V max. (variable)
Output S-Bal (SE): 3.5V max. (variable)
Output Impedance: Balanced ≤200Ω; S-Bal (SE) ≤100Ω

Headphone Section
Outputs: Balanced 4.4mm Pentaconn; S-Bal (SE) 3.5mm SE
Output Impedance: Balanced <1Ω; S-Bal (SE) <1Ω

SNR: Balanced <116dB(A) @ 0dBFS; S-Bal (SE) <115dB(A) @ 0dBFS
THD+N: <0.005% (1V @ 16Ω)
