iFi Audio ZEN DAC 3 - Hi-Res Headphone Amplifier & USB DAC

Product variants

Key Features:

Supports all high-res music formats up to PCM 768kHz, DSD512, and MQA
Improved DC offset and USB-C input overvoltage protection
USB-C input for plug and-play connectivity
4.4mm balanced headphone and line outputs
Fixed or variable output gain for optional preamp functionality
XBass+ and PowerMatch analogue processing modes
Improved low-jitter clock provides >20dB better performance
Improved circuitry ensures heightened signal purity and accuracy

Manufacturer warranty: 12 months

Product Data:

MSRP	KSD SKU	Barcode	MPN
£229.00	P003476	5060738788682	0311018

MSRP	£229.00
KSD SKU	P003476
Barcode	5060738788682
MPN	0311018

Product Resources:

You must be logged in to get access.
Click here to log in

View full details

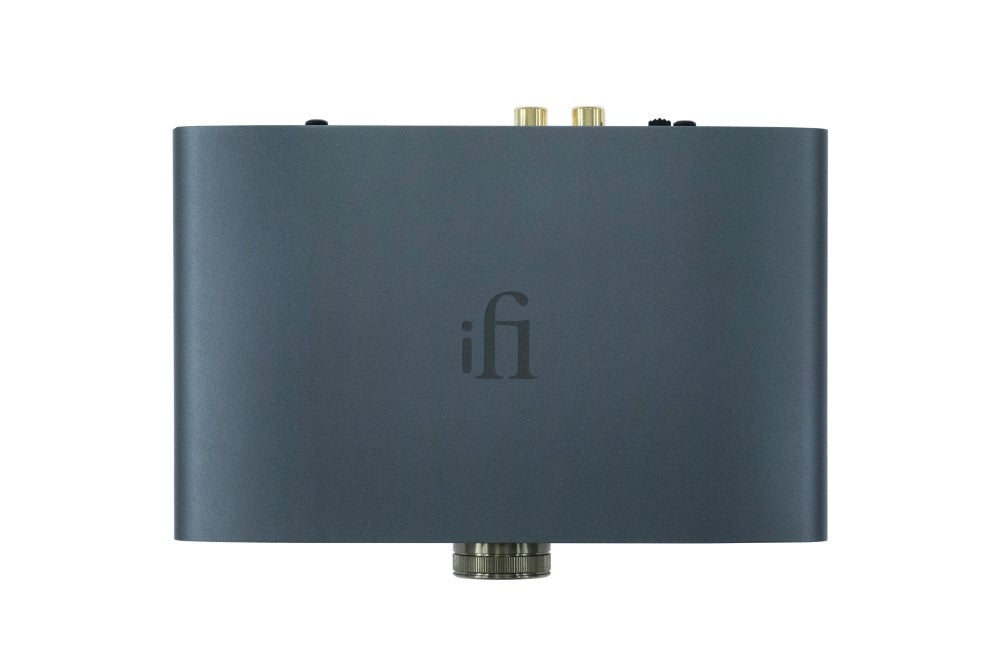

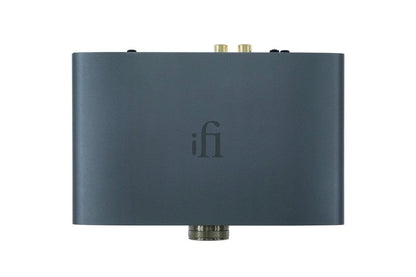

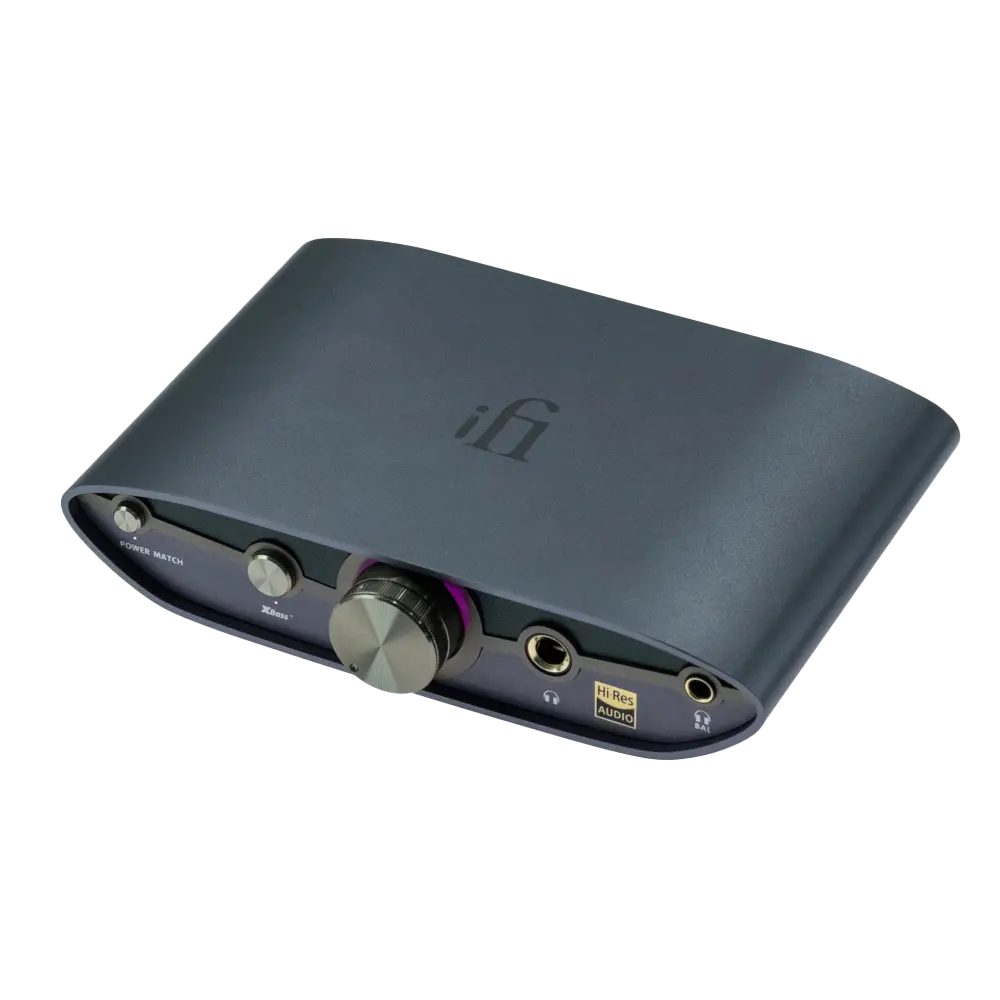

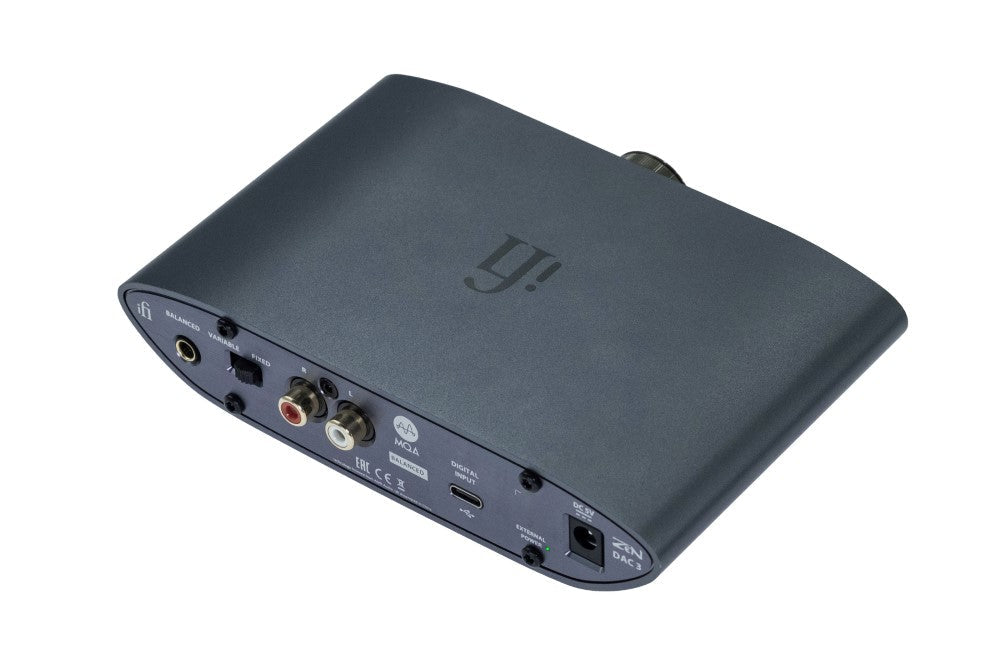

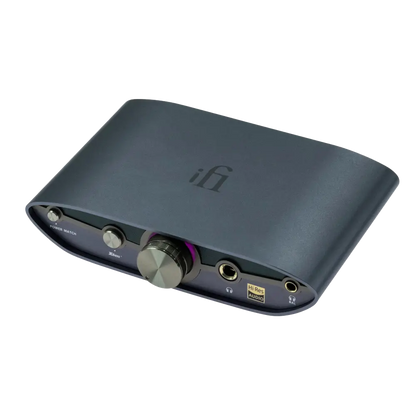

iFi Audio ZEN DAC 3

The ZEN DAC 3 is the key to unlocking the world of high-res music on streaming platforms - supporting sample rates up to PCM 768kHz, DSD512 and MQA. Its maximum output power of 390mW surpasses common laptops by 5-10 times, driving premium headphones with superior performance. The balanced output and volume control enable effortless connection to active speakers, enhances usability and renders it an exceptional DAC/Amp for both home and office use.

iFi Audio's new ZEN DAC DAC 3, with its sleek design and unparalleled performance, immerses you in a world of pure harmony. Rediscover your music, and be transported to purity, with the ZEN DAC 3. iFi Audio know the power of music, and how it’s capable of taking you out of this world and some place new. Somewhere tranquil, where melodies can uplift, and vocals can move you to tears.

Plug-In. World Out.

Hi-Res Heaven
ZEN DAC 3 supports all PCM formats up to 768kHz, DSD natively supports up to DSD 512, and even offers full MQA decoding.

Your Way or the Hi-Way
Offering RCA and 4.4mm balanced outputs with variable and fixed volume settings, ZEN DAC 3 can seamlessly connect to your active speakers, preamplifiers, or power amplifiers.

Beautifully Balanced
ZEN DAC 3 features two 4.4mm balanced outputs, one for headphones and one for other amplifiers, effectively minimising distortion and crosstalk.

DACtivate your Speakers
Variable or Fixed output switch, which enables/bypasses the volume knob. Use Variable mode when plugging ZEN DAC 3 directly to active speakers. Use Fixed mode when running line outputs to a receiver or main amplifier.

PowerMatch and XBass+
ZEN DAC 3 adopts XBass+, the newest iteration of iFi’s signature analogue EQ. Xbass+ adds back the loss bass frequencies from open headphones. Power Match is a gain boost for hungrier headphones.

Power Up, Protect On!
DC offset output voltage has been improved in the ZEN DAC 3. This means less audible clicks while switching functions. ZEN DAC 3 also benefits from input overvoltage protection via the all-new USB-C port.

iFi Audio ZEN DAC 3 - Hi-Res Headphone Amplifier & USB DAC

Features

Supports all high-res music formats up to PCM 768kHz, DSD512, and MQA
Improved DC offset and USB-C input overvoltage protection
USB-C input for plug and-play connectivity
4.4mm balanced headphone and line outputs
Fixed or variable output gain for optional preamp functionality
XBass+ and PowerMatch analogue processing modes
Improved low-jitter clock provides >20dB better performance
Improved circuitry ensures heightened signal purity and accuracy

Package Includes

iFi Audio ZEN DAC 3
USB3.0 Cable
RCA Cable
3.5 to 6.35 mm adapter
User Manual
Instruction card

Technical Specifications

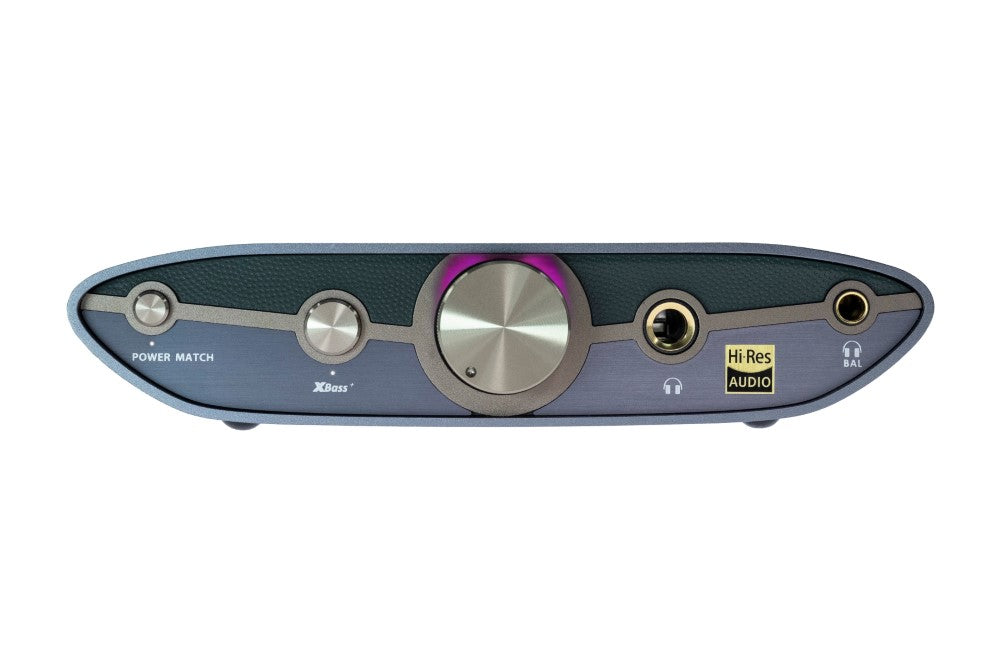

Headphone Output Connections (front): 6.35mm Single Ended Headphone Output; 4.4mm Balanced Headphone Output

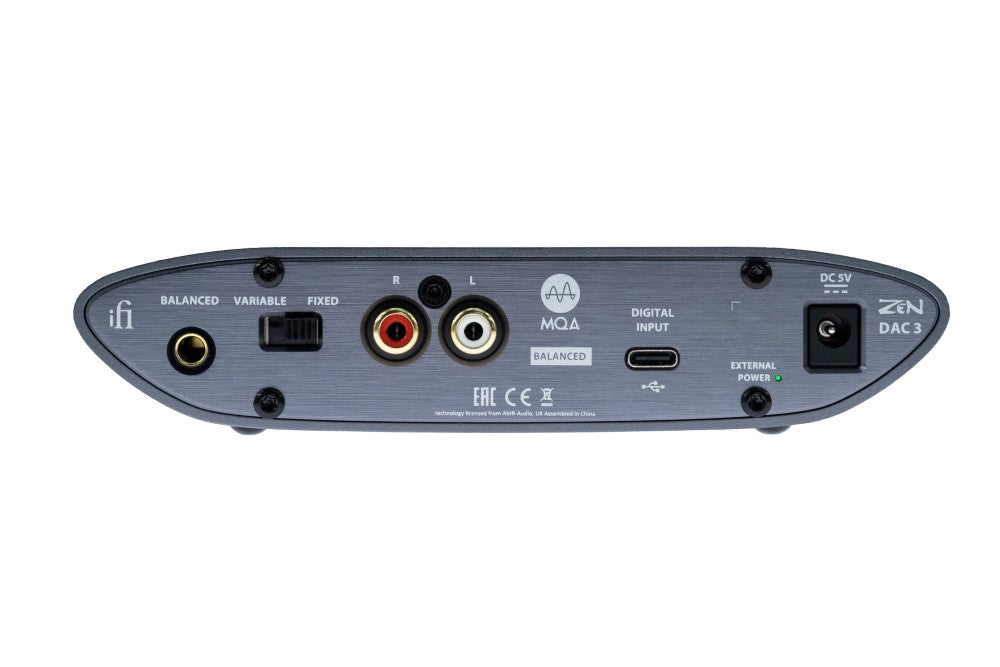

Line Output Connections (back): 4.4mm Balanced Line Output; RCA Single Ended Output
Inputs: USB-C (Phone/PC); Power 5V DC Centre +ve
Formats: PCM 768kHz, DSD 512, MQA Full Decoder
DAC: Bit-Perfect DSD & DXD DAC by Burr Brown
Headphone Output Power (RMS) Balanced 4.4mm: 390mW@32Ω; 7.2V@600Ω
Headphone Output Power (RMS) Unbalanced 6.3mm: 210mW@32Ω; 3.8V@600Ω
Output Impedance: <1Ω (BAL/UnBAL)
SNR: 109dB(A) (BAL/UnBAL)
DNR: 109dB(A) (BAL/UnBAL)
THD + N Balanced: <0.006% (2.0V @ 600Ω)
THD + N UnBAL: <0.006% (1.27V @ 32Ω)
Line Output Power Balanced 4.4mm: 2V-6.2V max. (variable); 4.2V fixed
Line Output Power UnBAL RCA: 1V-3.3V max. (variable); 2.1V fixed
Output Impedance: <200Ω BAL; <100Ω UnBAL
Frequency Response: 5Hz - 90kHz (+/-3dB)
Power Consumption: ~2.5W Max Signal
Dimensions: 158x115x35mm (6.2” x 4.6” x 1.4”)
Weight: 456g (1.0 lbs)
